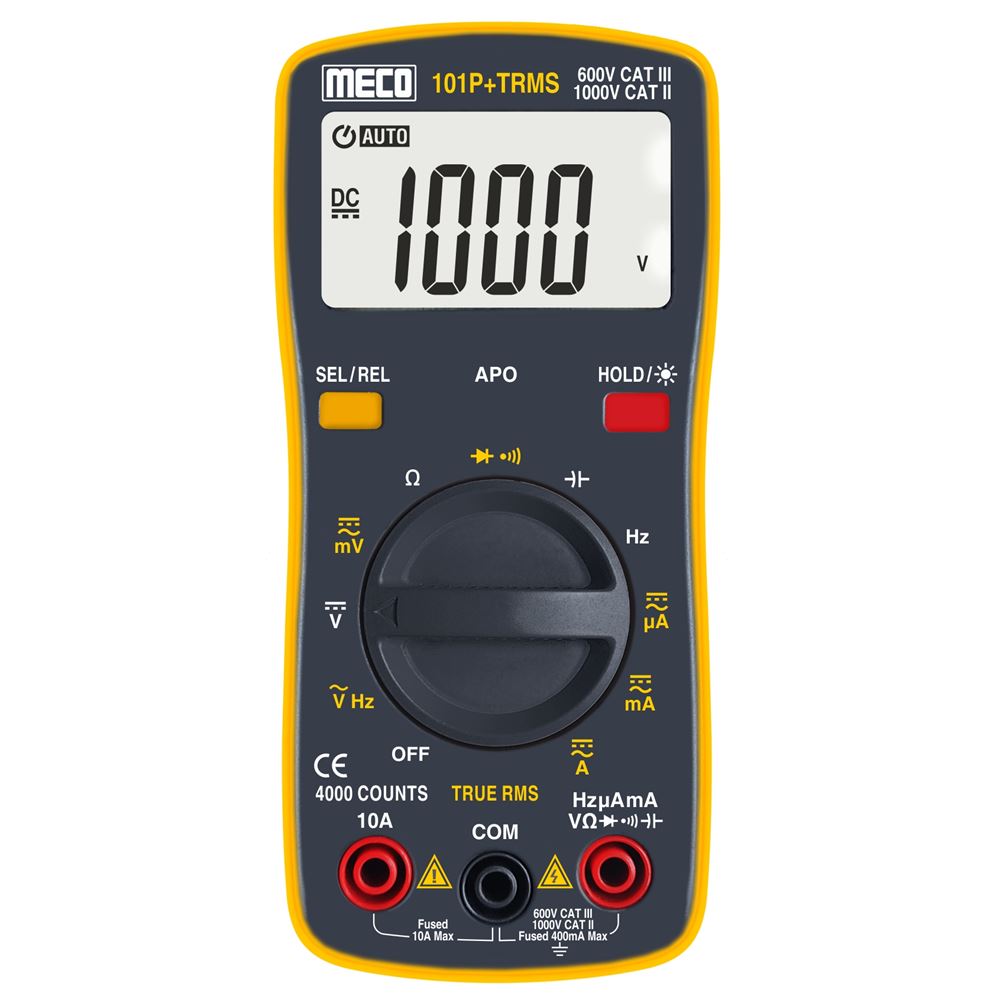

MECO Digital Multimeters 101P+TRMS

Name: MECO Digital Multimeters 101P+TRMS
Brand: J J ENTERPRISE
Price: 1040.0 INR
Availability: InStock

Price 1040.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MECO Digital Multimeters 101P+TRMS Specification

Interface Type
Standard test leads

Application
Electrical and electronic measurements

Operating Voltage
Battery 9V (6F22)

Frequency
10Hz ~ 10MHz

Humidity
80% RH (non-condensing)

Display Type
Large Backlit LCD Display

Resolution
6000 counts

Temperature
Operating: 0C ~ 40C, Storage: -10C ~ 50C

Features
TRMS, Auto/Manual Range, Data Hold, Low Battery Indication, Non-contact Voltage Detection (NCV), Backlight

Power Supply
9V Battery

Mounting Type
Handheld

Test Range
Voltage, Current, Resistance, Capacitance, Frequency, Diode, Continuity

Automation Grade
Manual

Port Size
Standard 4mm input jacks

Response Time
< 1 second (typical)

Measuring Range
AC/DC Voltage: 600mV ~ 1000V, AC/DC Current: 600A ~ 10A, Resistance: 600 ~ 60M, Capacitance: 10nF ~ 100mF

Accuracy
Up to (0.5%+3)

Usage
Measuring electrical parameters

Capacity
Capacitance: 10nF ~ 100mF

Machine Weight
Approx. 350 g

Control Mode
Manual

Overload Protection
Yes

Safety Rating
CAT III 600V

Equipment Type
Digital Multimeter

Diode/Continuity Test
Yes

Input Impedance
10M (V input)

Dimensions
186 x 91 x 45.5 mm

MECO Digital Multimeters 101P+TRMS Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About MECO Digital Multimeters 101P+TRMS

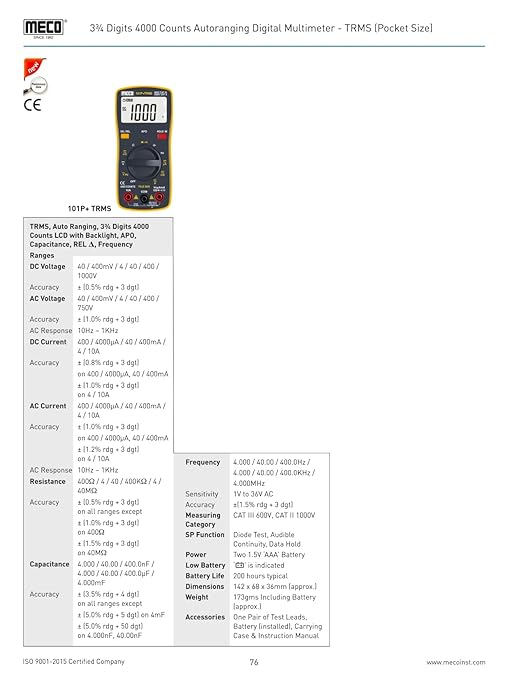

3 Digits / 4000 Counts TRMS Autoranging Pocket Size Digital

Multimeter with Backlight, Frequency, Capacitance, REL , Diode Test, Audible Continuity, Data Hold and APO functions.

Superior Measurement Versatility

The 101P+TRMS covers a wide range of essential tests including voltage, current, resistance, capacitance, frequency, diode, and continuity, making it highly versatile for electrical and electronic diagnostics. Data hold and auto/manual-ranging functions add enhanced convenience and efficiency.

Enhanced Accuracy and Safety

With True RMS measurement, the device ensures precise readings across various signal types, while its CAT III 600V safety rating and overload protection prioritize user safety. The robust build and standard 4mm input jacks offer reliability during prolonged and demanding use.

Clear Display and Ergonomic Design

A large, easy-to-read backlit LCD display delivers clarity in both bright and dim environments. The handheld form factor and lightweight design provide comfortable, portable operation for technicians in the field or the workshop, supported by handy features like low-battery indication and a fast response time.

FAQ's of MECO Digital Multimeters 101P+TRMS:

Q: How does the MECO 101P+TRMS Digital Multimeter enhance measurement accuracy?

A: This multimeter uses True RMS (TRMS) technology, allowing it to deliver accurate readings for both sinusoidal and non-sinusoidal waveforms. With a resolution of 6000 counts and an accuracy up to (0.5%+3), it offers reliable results for a broad spectrum of applications.

Q: What safety features are included in the MECO 101P+TRMS?

A: The multimeter comes with a CAT III 600V safety rating and integrated overload protection, ensuring safe operation even in demanding environments. Non-contact voltage detection (NCV) and low battery indication further enhance overall safety and usability.

Q: When should I use the auto/manual range function on this multimeter?

A: The auto range function is convenient for quickly measuring unknown values, while the manual range allows users to set a specific range for more precise readings in known measurement scenarios. Switching between them depends on whether you require speed or specificity.

Q: Where can I use the MECO 101P+TRMS Digital Multimeter?

A: Designed for flexibility, it is suitable for electrical and electronic diagnostics in industrial, commercial, and home environments. Its portability and battery operation make it convenient for both field work and bench measurements.

Q: What is the typical response time for measurements with this device?

A: The MECO 101P+TRMS offers a typical response time of less than 1 second, ensuring quick, real-time feedback when testing electrical parameters such as voltage, current, or continuity.

Q: How do I perform continuity or diode testing with the multimeter?

A: To check continuity or test diodes, switch the device to the appropriate test mode, connect the standard test leads to the circuit or component, and observe the results on the large LCD display. The multimeter provides audible and visual feedback for continuity testing.

Q: What benefits does the backlit LCD display provide?

A: The backlit LCD display ensures clear visibility of measurement results, even in low-light or challenging environments, reducing errors and improving user efficiency during long troubleshooting sessions.
